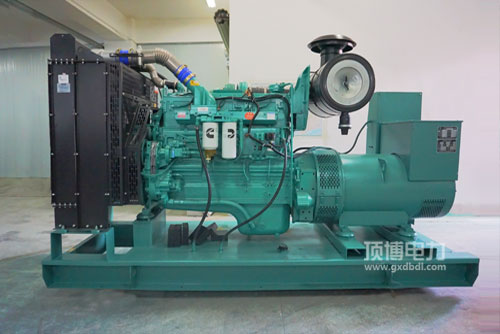

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用汽车发倾向然油金钱性好: 优秀的然油设定软件模式，独特的的STC、ESTC 级别划分设定软件模式，特色来设计的缸筒壳体焚烧室，髙压喷射式然油，有力的雾化吸入，焚烧有力的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用热车机瞬态功能良好: 精致的热车机全局构思，匹配康明斯特点的EFC系统化，掌握的精密较高，崩溃时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打着机升工率高: 整体上规划紧促.形壮摆置合适，作业有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50具备华人非道路交通第四价段及北美地区Tier2. Tier 3减排相关法律法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可知性好， 热车机正常运行及保护日常护理快速，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率依据 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯发电厂用打火机的优势：大小小， 挤压变高， 排水槽环境烧水，有利于通电，联通车载导航电源线的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起动因款式	通常用耗油率(kW)Prime Power	紧急公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
